CAPABILITIES

At SURKUT Machine Technology Inc., we have the knowledge and right equipment for the job:

IMG 4665-Surkut-0087

Automatic part probing quickly locates part features and locations for precision and repeatability.

IMG 4587-Surkut-0009

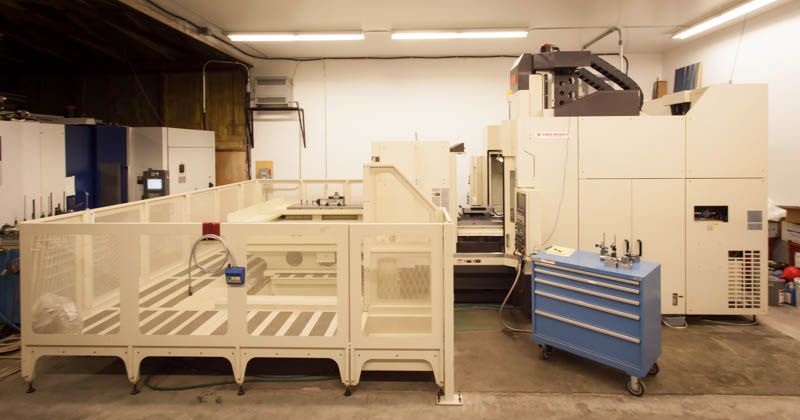

Our latest addition, the Yasda YBM-9150V CNC Jig Borer features travels of 59.1" x 35.4" x 17.7".  It is renowned all over the world as the best and most accurate machine in its class.

IMG 4769-Surkut-0191

1,000 PSI through-spindle coolant gives faster, more accurate deep hole drilling capabilities.

IMG 4703-Surkut-0125

 Automatic tool changers (ATC) with lots of tool capacity allows for efficient lights-out machining.

high finish cavity

The right equipment, tooling, and skilled programming means we can machine complex parts to a finished quality that requires virtually no polishing.

IMG 4629-Surkut-0051

Automatic pallet changers with large travels can hold multiple parts and can be set up while other parts run.

IMG 4683-Surkut-0105

Longer tool life, better surface finish, and accuracies to microns are all hallmarks of Yasda machine tools.

IMG 4821-Surkut-0243

We use high-speed, and light but fast cuts on our vertical machining centers which feature 24,000 RPM spindles for efficient material removal.

IMG 4714-Surkut-0136

Magnetic chucks provide a fast and secure workholding solution for full five-sided machinability.



"The future demands better surface finish and increased accuracy,
which we at SURKUT Machine provide 100% of the time."

- Doug Noxell, Owner

Ultra-Precision Machining Is Our Forte

The Yasda CNC Jig Borer YBM-9150V is the most accurate piece of equipment that we have to offer in terms of precision machining capabilities.  Our Yasda is equipped with the only automatic pallet changer of its size with (2) 1500 x 900mm pallets in all of North America.

The Yasda YBM-9150V is equipped with a Thermal Distortion stabilizing system to sustain the highest accuracy possible with Yasda machines at all times.  It's high performance will help our customers reduce manufacturing times and process costs significantly.

This machine tool is generally known to be one of the most accurate and rigid CNC machines available in the industry.  Thus, further proving why we chose to invest in a Yasda CNC Jig Borer, due to their quality and preciseness.  Yasda is known for its ability to machine to increments as small as one micron.

IMG 4596-Surkut-0018



Micron Diagram
 Yasda YBM-9150V



How Big is a Micron?

Vertical Machining Centers with Impressive Capability

With high-speed vertical bridge machining centers (VMC) from Johnford and Tongtai Topper, all of which are equipped with HSK-63A, 24,000 RPM Weiss spindles ranging in travels from 41.0" to 63.0" in the x-axis, 24.0" to 51.0" in the y-axis and 19.7" to 32.0" in the z-axis gives us the flexibility to easily accomodate your machining requirements.

Our machining centers also feature laser tool probes from BLUM for monitoring tool wear and part probing technology from both BLUM and Renishaw to ensure precision and repeatability.

Horizontal Machining

Our horizontal machining center (HMC) from Tongtai Topper features a robust CAT50, 10,000 RPM spindle which allows for heavy removal of material and (2) 500 x 500mm pallets with full contouring 'B' axis (0.001 degree).  It also has an extremely powerful 1,000 PSI through-spindle coolant system that allows us to drill holes effectively.


Link Icon View our Equipment list for machine specifications.

Areas of Expertise

Negative Stock Machining round

Negative Stock Machining

What exactly is Negative Stock Machining?

It is the process of creating a small gap between the parting line and shut-off surfaces.

Benefits of Machining to Negative Stock
  • increased tool life
  • shorter lead times
  • increased venting
  • reduced spotting time
  • minimal downtime = less repairs

It is also essential for multi-cavity and colour molds.  Learn more about this technique here.

High-Speed Rib Cutting Has Its Advantages

We have the techniques and cutting tools to effectively cut ribs rather than using EDM processes that are both costly and time consuming.

Advantages:

fewer processes = fewer errors

shorter lead times

lower cost versus traditional methods

Disadvantages:

depth restirctions

spindle speed required (24,000 RPM)

sharp corner

Example: In the example to the right, here is a 1mm Rib with a 3 degree draft at 30mm depth.

Rib Cutting
